Introduction

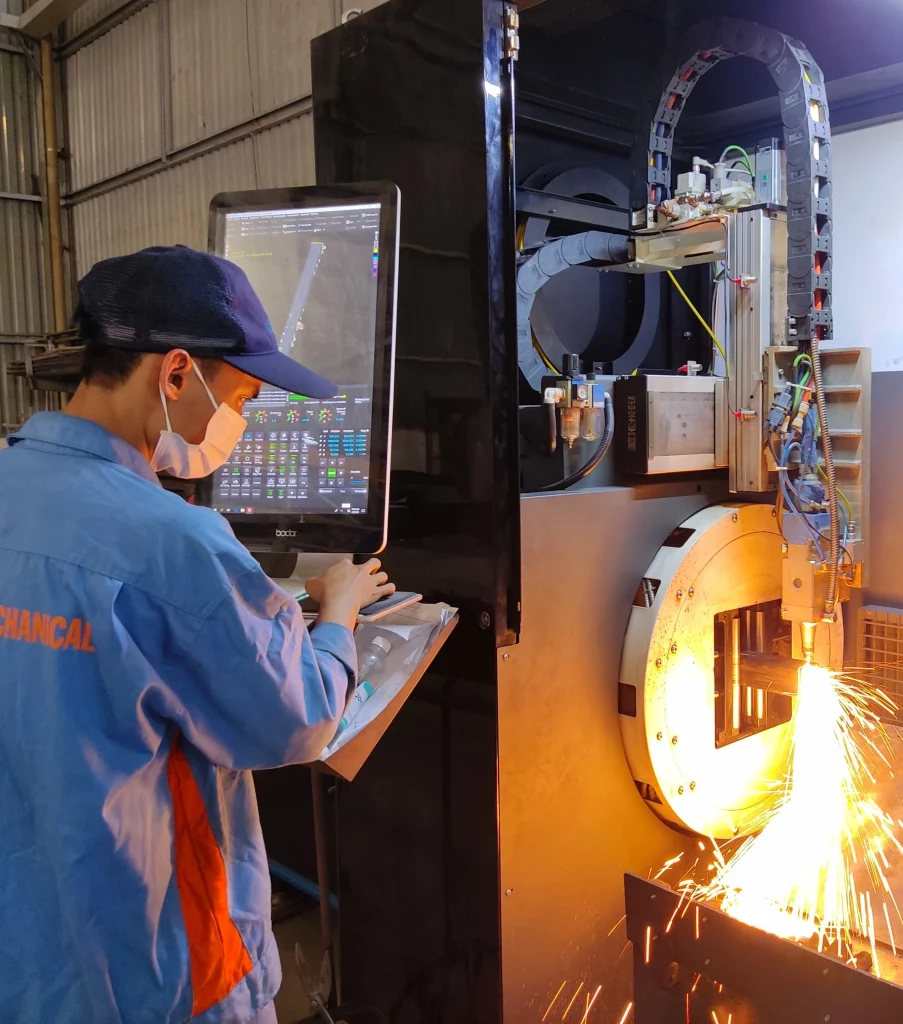

Tube laser cutting is a process that uses a laser beam to cut tubes of metal. The laser beam is focused on the tube, and the heat from the beam melts the metal and then vaporizes it. The laser beam can be moved along the tube to cut any desired shape.

The material (tube/pipe) is held in a controllable lathe, where the tube will rotate in line with the design specifications as the laser makes cuts. Laser tube cutting can create through-holes of any shape as small as the wall thickness of the material, and is also often used to cut channels that allow for easy bending and welding of the tube for angled tubing.

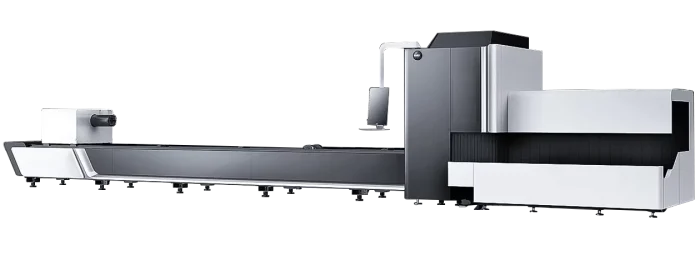

tube-laser-cutting-bodor-model

Capabilities

Effective Round Tube Cutting Diameterφ8-φ230mm
Effective Square Tube Cutting Diameter□8-□230mm
Maximum machinable tube length6500mm-9200mm
X axis maximum speed90m/min
Y axis maximum speed60m/min

Sizes & Tolerances

áđá
Round Pipe
Min OD: 38.10 mm
Max OD: 406.40 mm
áđá
Channel
Min OD: 38.10 mm
Max OD: 254 * 254 (mm)
áđá
Wide Flange
Min OD: 38.10 mm
Max OD: 254 * 254 (mm)
áđá
HSS Tube
Min OD: 38.10 mm
Max OD: 304.80 * 304.80 (mm)
áđá
Angle
Min OD: 38.10 mm
Max OD: 254 * 254 (mm)
áđá
Other Shapes
Min OD: 38.10 mm
Max OD: 254 * 254 (mm)
tube-laser-cutting-product

Summary of Tube Laser Cutting Nominal Tolerances

Parameter Tolerance
Facet-to-feature
±0.127mm (0.005in)
Feature-to-feature
±0.076mm (0.003in)
Hole/Slot diameter
±0.127mm (0.005in)
Minimum feature size
No smaller than wall thickness

Tube Laser Cutting Material Options

Profile and Material Options for Laser Pipe and Tube Cutting Services

Material Round Tube Pipe Rectangular Tube Square Tube
Aluminum
  • 6061
  • 6063
  • 2024
  • 6061
  • 6063
  • 6101
  • 6061
  • 6063
  • 6061 **
  • 6063 **
Steel
  • A4130
  • Mild Steel A500
  • Mild Steel A500
  • Mild Steel A513
  • Mild Steel A500
  • Mild Steel A513
Stainless Steel
  • SS 304
  • SS 316
  • SS 304
  • SS 316
  • SS 304
  • SS 316
  • SS 304
  • SS 316

Finishes

Applying a finish to your sheet cut parts can not only improve their cosmetic appeal but also provide surface protection and increased performance. Below you will find some of the post-processing options and finishes we offer:

adhesives-and-coating-finished

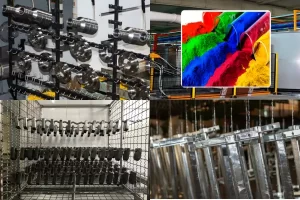

Adhesives and Coating
  • Black Oxide
  • Powder Coating
  • Hot-Dip Galvanizing
  • Wet Paint
anodizing-1-finished
Anodizing
  • Type II Anodize
  • Type III Hard coat
  • Type III w/ PTFE.

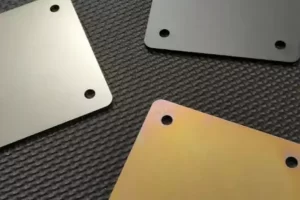

metal-plating-1-finished
Metal Plating
  • Electroless Nickel
  • Zinc
  • Gold
  • Silver
conversion-and-pretreatments-1-finished

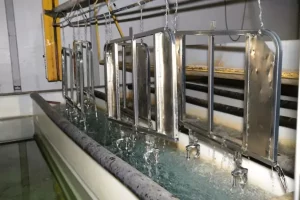

Pretreatments
  • Passivation
  • Pickle and Oil
  • Bead/Sand Blasting
  • Electropolishing

FAQs

What is the turnaround time for laser cutting orders?

It can vary depending on several factors, including the complexity of the design, the quantity of parts, the material being cut, and the current workload of our laser cutting machines.

Worked material

  • Aluminum
  • Stainless Steel
  • Carbon Steel

Advantages and disadvantages of tube laser cutting?

Advantages
  • High precision and accuracy: Laser cutting can produce very precise cuts with a high degree of accuracy. This is important for applications where the tolerances are tight, such as in the aerospace and medical industries.
  • Fast cutting speed: Laser cutting is a very fast process, which can help to reduce production costs.
  • Versatility: Laser cutting can be used to cut a wide variety of materials, including metal, plastic, and wood. This makes it a very versatile process that can be used for a variety of applications.
  • No tooling required: Laser cutting does not require any tooling, which can save money and time.
  • Clean cutting: Laser cutting produces a clean cut with no burrs or slag, which can save time and money on finishing operations.
Disadvantages
  • High upfront cost: The initial cost by using laser cutting service can be high.
  • Complex programming: Laser cutting requires complex programming, which can be time-consuming and expensive.
  • Requires skilled operators: Laser cutting requires skilled operators to operate the machine safely and efficiently.
  • Can produce fumes and gases: Laser cutting can produce fumes and gases, which can be harmful to health.
  • Not suitable for all materials: Laser cutting is not suitable for all materials, such as thick or hard materials.
  • Overall, laser cutting is a versatile and precise process that can be used for a variety of applications. However, it is important to consider the advantages and disadvantages before deciding whether or not to use this process.

Common round steel pipe in Vietnam

Common Square Steel Pipe In Vietnam

Sizes
(mm)
Thickness (mm) Unit weight(kg/m)
0,550,600.650.700.750.800.850.900.951.001.051.101.151.201.251.301.351.401.501.601.701.75
10.00.180.190.200.220.240.250.260.280.290.300.320.330.340.350.37
12.00.200.220.230.250.270.290.300.320.340.350.370.380.400.420.430.450.460.48
12.70.210.230.250.270.290.300.320.340.360.370.390.410.430.440.460.480.490.51
14.00.230.250.280.300.320.340.360.380.400.410.430.350.470.490.510.530.550.570.60
15.00.250.270.300.320.340.360.380.400.430.450.470.490.510530.550.570.590.610.65
16.00.270.290.320.340.360.390.410.430.460.480.500.520.550.570.590.610.630.660.70
19.00.320.350.380.410.430.460.490.520.540.570.600.630.650.680.710.730.760.790.840.890.940.97
20.00.340.370.400.430.460.490.520.450.570.600.630.660.690.720.750.770.800.830.890.941.001.02
22.50.380.420.450.480.520.550.580.620.650.680.710.750.780.810.840.880.910.941.001.071.131.16
24.00.410.440.480.520.550.590.620.660.690.730.760.800.830.870.900.940.971.011.071.141.211.24
25.00.420.460.500.540.570.610.660.690.720.760.800.840.870.910.940.981.011.051.121.191.261.30
25.40.430.470.510.550.580.620.660.700.740.770.810.850.880.920.961.001.031.071.141.211.281.32
30.00.510.560.600.650.690.740.780.830.870.920.961.011.051.091.141.181.231.271.361.441.541.57
35.00.600.650.700.760.810.860.920.971.021.071.131.181.231.281.341.391.441.491.591.701.181.85
36.00.610.660.720.780.830.890.941.001.051.111.161.211.271.321.371.431.481.531.641.751.851.90
38.00.770.820.880.941.001.051.111.171.231.281.341.401.451.511.571.621.731.851.962.01
38.00.770.820.880.941.001.051.111.171.231.281.341.401.451.511.571.621.731.851.962.01
40.00.810.870.930.991.051.111.171.231.291.351.411.471.531.591.651.711.831.952.062.12
50.01.161.241.321.391.471.551.621.701.771.851.922.002.072.152.302.452.602.67
50.81.181.261.341.421.491.571.651.721.801.881.962.032.112.182.342.492.642.72
60.01.401.491.581.681.771.861.952.042.132.232.322.412.502.592.772.953.133.22
65.01.721.821.922.022.122.222.312.412.512.612.712.813.013.203.402.50
75.01.982.102.212.332.452.562.682.792.913.023.133.253.483.703.934.05
76.22.022.132.252.372.492.602.722.842.953.073.193.303.533.774.004.11
80.02.612.732.862.983.103.223.353.473.713.964.204.32
89.02.913.043.183.323.453.593.733.864.144.414.684.82
90.02.943.083.223.363.493.633.773.914.184.464.734.87
100.03.583.733.894.044.194.354.654.965.275.42
101.63.643.793.954.114.264.424.735.045.355.51
120.06.336.52
