Quality Control Methods for CNC Tube Bending and Laser Cutting Processes

    Introduction

    In modern manufacturing, precision and consistency are key factors in creating high-quality products. Two popular technologies today are CNC tube bending and laser cutting, which are widely used in the automotive, aviation, furniture, and construction industries.

    However, no matter how modern the machinery is, without strict quality control (QC), products can still be defective—causing material waste, increasing costs, and damaging a company’s reputation.

    This article analyzes the most effective quality control methods in the CNC tube bending and laser cutting process.

    Why is Quality Control Important?

    1. Ensure dimensional accuracy
      In mass production, each part must meet the correct design specifications. Any deviation can complicate the assembly process, or even require complete re-production.

    2. Minimize scrap and waste
      A defective product means wasted materials, processing time, and labor costs. QC helps detect problems early and reduce risks.

    3. Product uniformity
      For large orders (thousands of parts), customers expect all products to be identical. QC ensures this consistency.

    4. Brand reputation
      Enterprises with strong quality control processes build trust with customers, opening up opportunities for long-term cooperation.

    Quality Control Methods in CNC Tube Bending

    1. Measure bending angles with specialized equipment
      After bending, use an angle gauge or digital protractor to verify accuracy against the design drawing.

    2. Check tube wall deformation
      During bending, tube walls may thin or become distorted. Measuring wall thickness and cross-sectional shape helps detect errors promptly.

    3. Compare with 3D CAD drawings
      Use a 3D scanner to compare the bent part with the CAD model, ensuring correct radius and length.

    4. Perform actual assembly tests
      Some parts are tested by trial assembly into the larger structure to confirm there are no deviations.

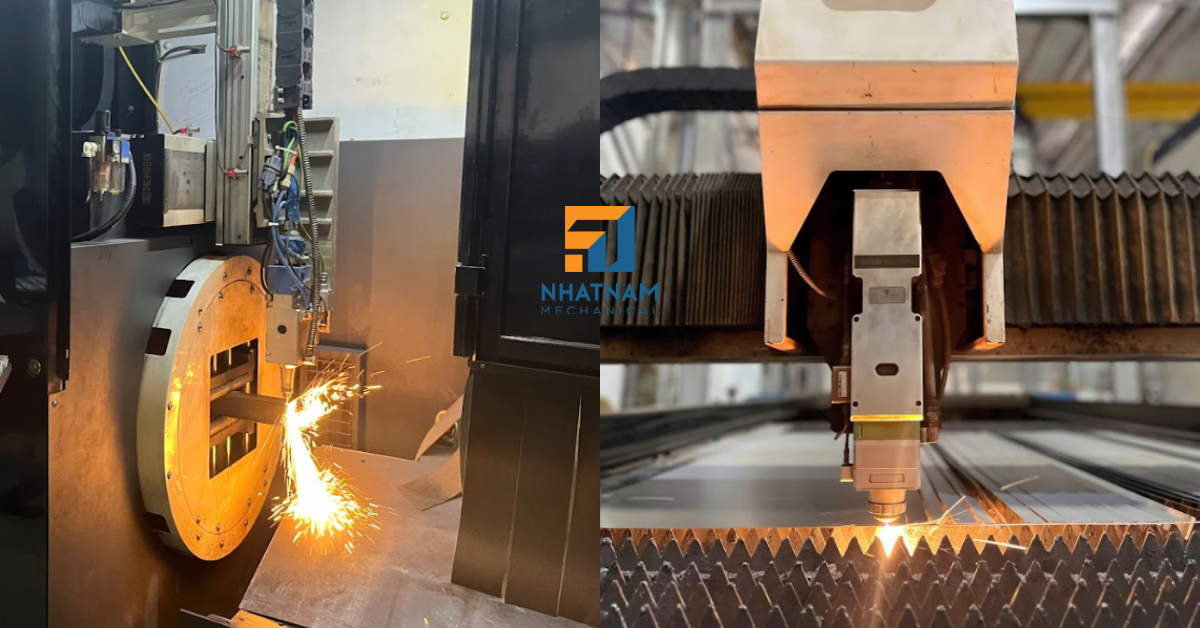

    Quality Control Methods in Laser Cutting

    1. Measure cutting dimensions
      Use calipers or a coordinate measuring machine (CMM) to check the accuracy of length, width, and cutting radii.

    2. Inspect cutting surfaces
      Examine with the naked eye or an industrial microscope to detect burrs, scorch marks, or cracks.

    3. Evaluate squareness and smoothness
      Cutting surfaces must be square with the material and smooth enough to avoid issues in subsequent processes.

    4. Verify with laser scanning
      A laser scanner can quickly and accurately detect deviations by comparing the part with its design.

    Incorporating QC into the Entire Process

    • Apply international standards
      Examples: ISO 9001, ISO/TS 16949 (automotive), AS9100 (aviation).

    • Conduct periodic batch inspections
      Random sampling during production prevents errors from going unnoticed until it’s too late.

    • Use production data management software (MES, ERP)
      Integrating QC into digital systems enables real-time monitoring.
      All inspection data is stored and easily retrieved when proof of quality is required.

    • Train QC staff
      Modern machinery cannot completely replace human expertise.
      QC personnel must be trained to detect errors, analyze causes, and recommend solutions.



    Conclusion

    CNC tube bending and laser cutting offer high precision and the ability to process complex components. However, only when paired with a rigorous quality control process can businesses ensure that products meet technical requirements, minimize risks, and optimize costs.

    By combining precise measurement, surface inspection, assembly testing, and the application of digital technology and international standards, manufacturers can improve competitiveness, expand into new markets, and build a strong reputation with customers.
