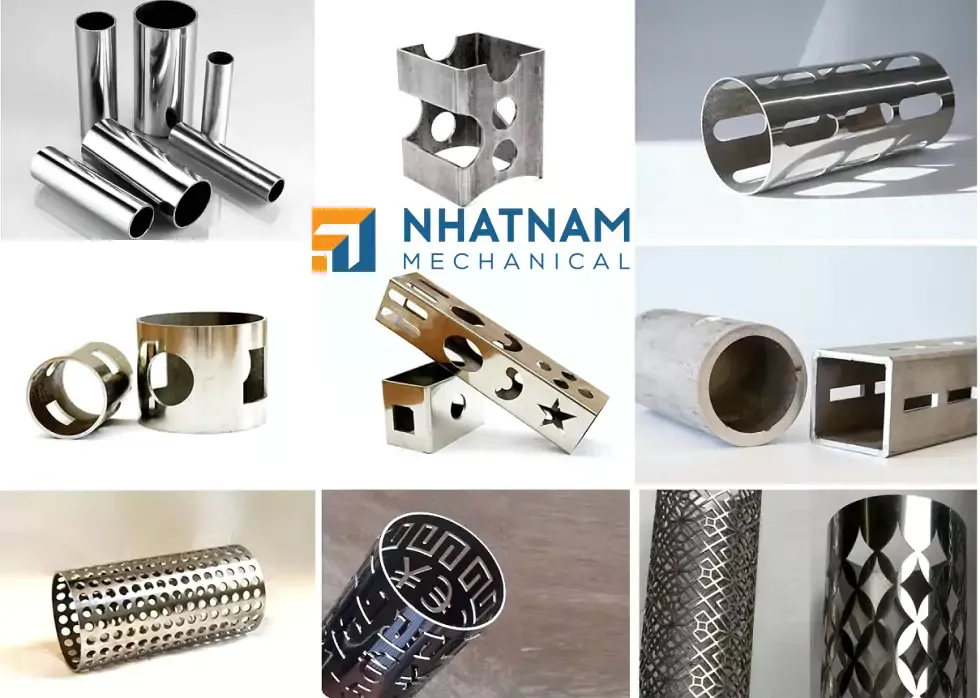

Tube laser cutting machines are specialized industrial equipment designed primarily for cutting various hollow metal tubing materials, including stainless steel, carbon steel, galvanized steel, and other metal tubes used in industrial and commercial applications. This advanced cutting technology utilizes high-power fiber lasers to achieve precise, efficient, and flexible cutting of tubular components.
These machines are widely used in various fields such as construction, industrial piping, office furniture manufacturing, sports equipment manufacturing, and the automotive industry. Their ability to handle a wide range of tube diameters, wall thicknesses, and shapes makes tube laser cutting indispensable for both small and medium-sized businesses as well as large-scale manufacturing operations.
1. How Tube Laser Cutting Machines Work

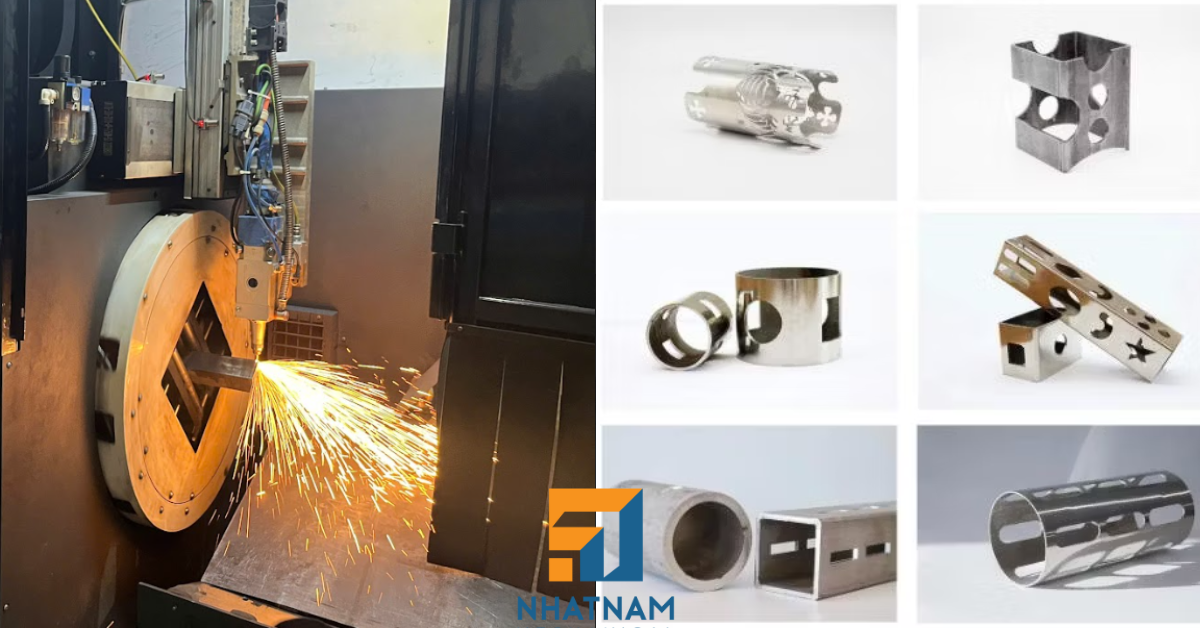

The machine operates by projecting a fiber laser or CO₂ laser beam onto the tube surface. The laser beam generates extremely high temperatures, melting or vaporizing the material, while the booster gas (oxygen, nitrogen, or compressed air) blows away the molten metal, creating a sharp and clean cut.
The Tube Laser Cutting Process:
Step 1: Load the Tube into the Machine
- The metal tube is placed in the machine’s chuck, which holds and rotates the tube during the cutting process.
- High-end machines feature an automatic material loading and unloading system, improving work efficiency.
Step 2: CNC Programming & Importing Design Drawings
- CAD (Computer-Aided Design) drawings are imported into the CNC control system.
- The machine calculates and programs the precise cutting path according to the design.
Step 3: Laser Cutting Process
- The laser beam is directly projected onto the tube surface, generating intense heat to melt the metal.
- Booster gas is sprayed to clean the cut and prevent oxidation.
- The tube rotates and moves along multiple axes, allowing for bevel cutting or complex profile cutting.
Step 4: Finishing and Quality Control
- The cut tube is checked for accuracy and quality and further processed if necessary.
- The finished product can proceed to additional stages such as welding, painting, or assembly.
2. Outstanding Features of Tube Laser Cutting Machines
- High precision: Cutting deviation of only ±0.1mm, ensuring sharp and clean edges.
- Fast processing speed: Much faster than traditional methods like plasma cutting, sawing, or milling.
- Versatile material compatibility: Can cut steel, stainless steel, aluminum, copper, titanium, and more.
- Complex profile cutting: Easily cuts patterns, holes, grooves, and joints without requiring additional processing.
- High automation: Minimizes labor requirements and optimizes the production process.
3. Applications of Tube Laser Cutting Machines
Tube laser cutting technology is an advanced solution in the metalworking industry, offering high precision, fast cutting speeds, and the ability to cut intricate shapes.
Below are some key application areas:
- Automotive Industry: Used to process car frames, exhaust pipes, anti-roll bars, and load-bearing components, ensuring high precision and optimizing vehicle weight.
- Aerospace Industry: Supports the production of lightweight components with strict technical requirements.
- Construction and Steel Structure Industry: Used to cut beams, columns, and steel frames, improving structural integrity and speeding up assembly.
- Metal Furniture Manufacturing: Enables the creation of table and chair frames, decorative shelves, and intricate designs without requiring additional processing.
- Medical Industry: Used in the production of hospital bed frames, medical instrument racks, and other support equipment.
4. Comparison of Tube Laser Cutting Machines with Traditional Cutting Methods
| Feature | Tube Laser Cutting Machine | Traditional Cutting (Sawing, Plasma, Milling) |
|---|---|---|
| Speed | Very fast, automated | Slow, requires multiple steps |
| Precision | High, deviation of ±0.1mm | Lower precision, requires surface finishing |
| Material Waste | Minimal | Significant material waste |
| Complex Shape Cutting | Capable of cutting any shape | Limited capability |
| Cost Efficiency | Cost-effective for mass production | Higher costs due to labor and material waste |
Conclusion
The tube laser cutting machine represents a breakthrough in the metalworking industry, enabling businesses to increase productivity, reduce costs, and produce high-quality products. With its automation capabilities and precise cutting performance, this technology is becoming an indispensable choice across various manufacturing sectors.
