Introduction

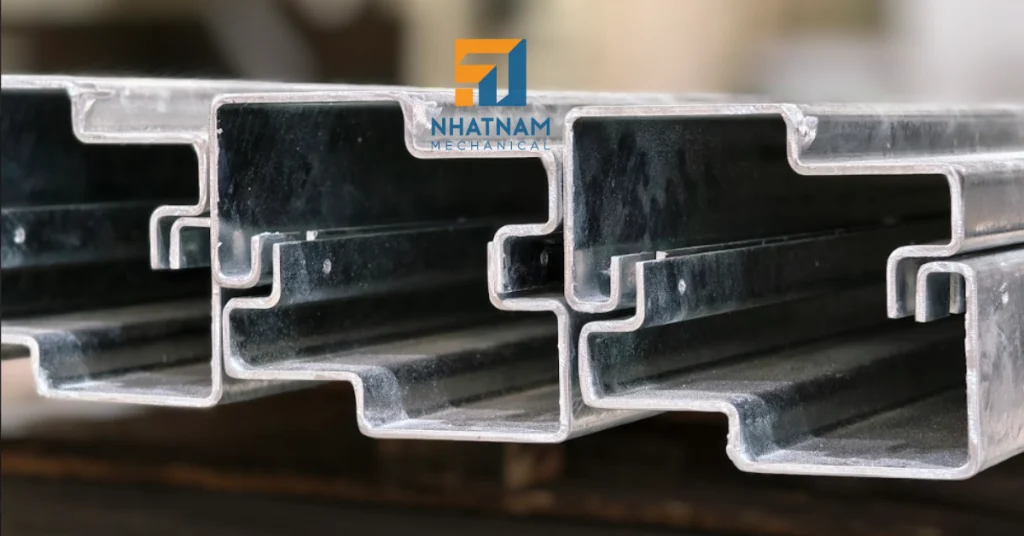

Sheet metal laser cutting is a fabrication process that uses a high-powered laser to melt or vaporize material, leaving a precise cut edge. It is a versatile process that can be used to cut a wide variety of metal thicknesses, including stainless steel, aluminum, and mild steel.

First, Nhat Nam Mechanical's Fabricators convert CAD and drawing data into machine code. A laser cutting machine will then precisely remove sheet material. If any assembly or post-processing is required, our manufacturers will provide turnkey finishing to the part.

Laser cutting is often used for complex or intricate cuts that would be difficult or time-consuming to make with traditional methods, such as punching or shearing.

Capabilities

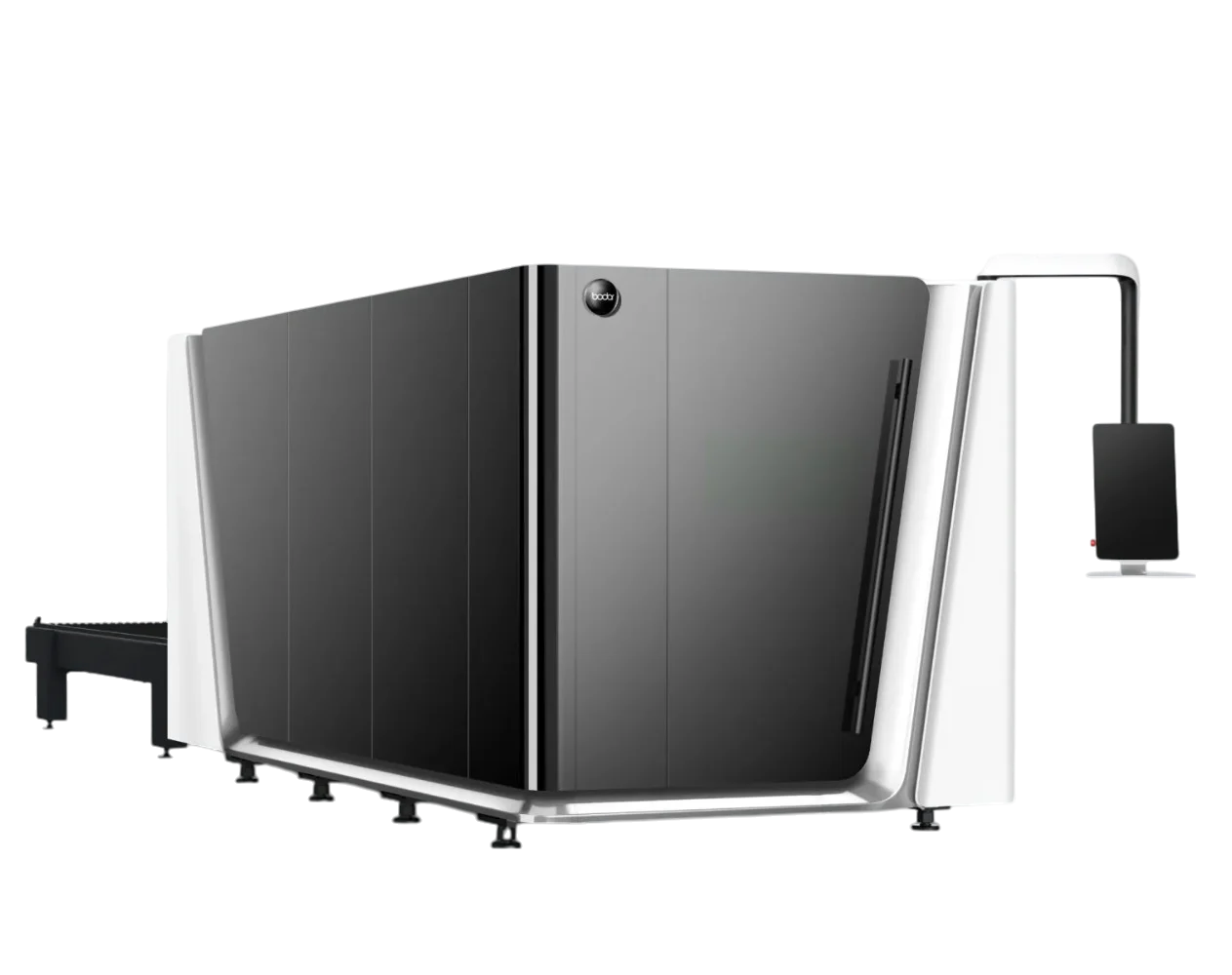

Nhat Nam provides quality laser cut components to the OEM, and specialties industries in Vietnam. Our equipment includes a 3000-Watt Fiber Laser with twin pallets and a 6000-Watt C3 Bodor Fiber Laser with an autoload cell for maximum efficiency.

We deliver short and medium runs alike with unmatched precision.

Sizes & Tolerances

Blank Size: 3048x1524mm (118”x59”)
Sheet Thickness: Up to 25mm (0.99")
General Tolerances: Edge to edge tolerances of +/- 0.010” nominal on the top-cut surface. Thicker materials may have a tolerance deviation on the bottom face due to tapers inherent in laser cutting

Materials & Post-processing

Steel

CRS/HRPO
Galvanneal (GA)
Galvanized (GI)

Thicknesses available

0.025 in. - 0.787 in. (0.635 mm - 20.0 mm)

Stainless Steel

Thicknesses available

0.025 in. - 0.393 in. (0.635 mm - 10.0 mm)

Aluminum

1050
5052
6061

Thicknesses available

0.025 in. - 0.393 in. (0.635mm - 10.0mm)

Part Marking

Part marking is a great way to add high-contrast markings, part numbers, logos, and more. The table below compares the different types of marking methods we offer.

Marking Method	Common Uses	Pros	Cons
Silk Screen	Graphics Logos Text	Color Variety Crisp Detail Works on a variety of materials	More costly at lower quantities Susceptible to wear/fading over
Laser Marking and Engraving	Graphics/Text Part Numbers	Extremely durable markings Crisp Detail	Cannot produce colored markings
Bag and Tag	Serialization Part Numbers	Very low cost Can speed up inventory and receiving processes	Non-permanent solution

Finishes

Applying a finish to your sheet cut parts can not only improve their cosmetic appeal but also provide surface protection and increased performance. Below you will find some of the post-processing options and finishes we offer:

Adhesives and Coating

Black Oxide
Powder Coating
Hot-Dip Galvanizing
Wet Paint

Anodizing

Type II Anodize
Type III Hard coat
Type III w/ PTFE.

Metal Plating

Electroless Nickel
Zinc
Gold
Silver

Pretreatments

Passivation
Pickle and Oil
Bead/Sand Blasting
Electropolishing

Design Guides

File Preparation Reference Sheet

File Types

Use vector files such as .DXF for 20 designs as well as for artwork such as engravings and part markings

Recommended 3D design formats:

.STEP
.STP
.SLDPRT
.PRT

File Optimization

Check that your design file does NOT contain:

Duplicate or overlapping lines, curves, points, etc.
Open curves or broken paths
Lines with a length of less than zero
Extraneous curves preventing the detection of boundaries
Stray points or empty objects

Design Guidelines Reference Sheet

Tolerances

Design for edge to edge tolerances of +/- 0.010" nominal on the top-cut surface
Designate which is the top face on your drawing

Kerf

Don't forget to account for the thickness for laser cutting: 0.008-0.012"
Kerf width generally becomes larger as the material thickness increases

Distance Between Features

MT = Material Thickness

Minimum Hole to Edge Distance = 2X MT or 0.125”, whichever is smaller
Minimum Hole to Hole Distance = 6X MT or 0.125”, whichever is smaller
Minimum Relief Cuts = 0.010” or 1X MT, whichever is greater
Minimum Corner Fillets = 0.5X MT or 0.125”, whichever is smaller
Minimum Tab Thickness = 0.063” or 1X MT, whichever is greater
Minimum Slot Thickness = 0.040” or 1X MT, whichever is greater

FAQs

What is the turnaround time for laser cutting orders?

It can vary depending on several factors, including the complexity of the design, the quantity of parts, the material being cut, and the current workload of our laser cutting machines.

Worked material

Aluminum
Stainless Steel
Carbon Steel

Advantages and disadvantages of laser cutting?

Advantages

High precision: Laser cutting can achieve very high precision, with tolerances of up to 0.01 mm. This makes it ideal for cutting complex shapes and patterns.
Fast speed: Laser cutting is a very fast process, and can cut through materials much faster than traditional methods such as sawing or drilling.
Clean cuts: Laser cutting produces clean cuts with no burrs or slag. This makes it ideal for applications where a high-quality finish is required.
No tooling required: Laser cutting does not require any tooling, such as saw blades or drill bits. This can save money and time, and also makes it easier to change between different materials.
Automatable: Laser cutting can be automated, which can further improve productivity.

Disadvantages

High cost: Laser cutting equipment is expensive, and the initial investment can be prohibitive for small businesses.
Limited material thickness: Laser cutting is not suitable for cutting very thick materials. The maximum thickness that can be cut depends on the type of laser and the material being cut.
Hazardous fumes: Laser cutting can produce harmful fumes, so it is important to have adequate ventilation in the workplace.
Requires skilled operators: Laser cutting requires skilled operators to ensure that the process is done safely and efficiently.
Overall, laser cutting is a versatile and efficient process that can be used to cut a wide variety of materials.

Design guidelines for Cut features

Notches and Slots

Notches and slots must be designed in the ﬁle,even if they are at the kerf thickness of the sheetcutting process. It is recommended for slot featuresto have exaggerated “lollipop” rounds on at leastone side to help compensate for the pierce-hole,which will be slightly larger than the cuttingthickness (kerf).

Designing Text For Cutting

It is important to “stencilize” text or add joiningbridges on free-ﬂoating text features, such asthe holes in D, O, P, Q, or other closed-loopcharacters. Otherwise, the features will be lost,and all that will be left is a letter-shaped hole! This guideline also applies to reversed shapescontaining holes; bridges should also be used inthose instances.

Common Sheet Metal Materials

Gauge	Steel		Galvanized		Stainless		Aluminum
Gauge	in	mm	in	mm	in	mm	in	mm
3	0.2391	6.07
4	0.2242	5.69
5	0.2092	5.31
6	0.1943	4.94					0.1620	4.11
7	0.1793	4.55			0.1875	4.76	0.1443	3.67
8	0.1644	4.18	0.1681	4.27	0.1719	4.37	0.1285	3.26
9	0.1495	3.80	0.1532	3.89	0.1563	3.97	0.1144	2.91
10	0.1345	3.42	0.1382	3.51	0.1406	3.57	0.1019	2.59
11	0.1196	3.04	0.1233	3.13	0.1250	3.18	0.0907	2.30
12	0.1046	2.66	0.1084	2.75	0.1094	2.78	0.0808	2.05
13	0.0897	2.28	0.0934	2.37	0.0940	2.39	0.0720	1.83
14	0.0747	1.90	0.0785	1.99	0.0781	1.98	0.0641	1.63
15	0.0673	1.71	0.0710	1.80	0.0700	1.78	0.0570	1.45
16	0.0598	1.52	0.0635	1.61	0.0625	1.59	0.0508	1.29
17	0.0538	1.37	0.0575	1.46	0.0560	1.42	0.0450	1.14
18	0.0478	1.21	0.0516	1.31	0.0500	1.27	0.0403	1.02
19	0.0418	1.06	0.0456	1.16	0.0440	1.12	0.0360	0.91
20	0.0359	0.91	0.0396	1.01	0.0375	0.95	0.0320	0.81
21	0.0329	0.84	0.0366	0.93	0.0340	0.86	0.0280	0.71
22	0.0299	0.76	0.0336	0.85	0.0310	0.79	0.0250	0.64
23	0.0269	0.68	0.0306	0.78	0.0280	0.71	0.0230	0.58
24	0.0239	0.61	0.0276	0.70	0.0250	0.64	0.0200	0.51
25	0.0209	0.53	0.0247	0.63	0.0220	0.56	0.0180	0.46
26	0.0179	0.45	0.0217	0.55	0.0190	0.48	0.0170	0.43
28	0.0149	0.38	0.0187	0.47	0.0160	0.41	0.0126	0.32
